Radio Shuttle Racking

This is a smartly operated racking, so the loading/unloading operations only need to be controlled by the control device and the forklift when picking up goods.

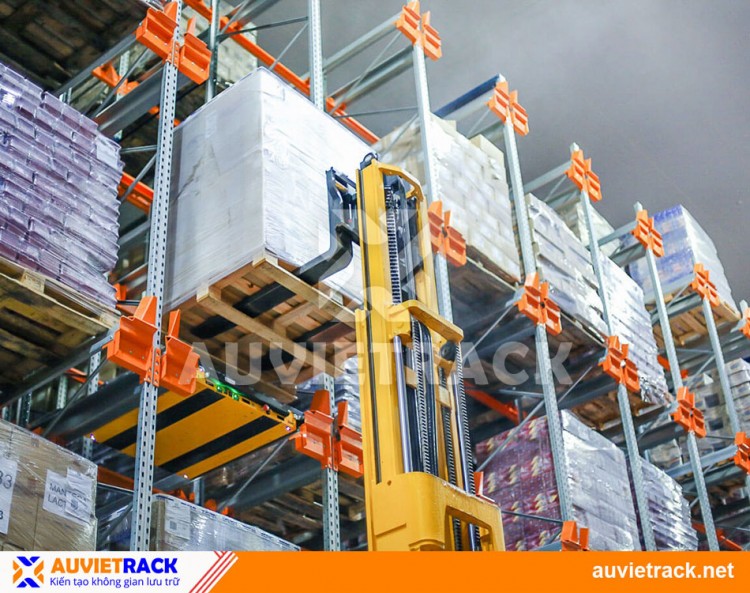

The forklift will place the Pallet Shuttle robot to the position of the rack where goods need to be loading or unloading.
When loading goods into the rack

•  Step 1: When loading goods to store in the rack, the forklift will place each pallet to the top of the rack row, where the picking robot is located.

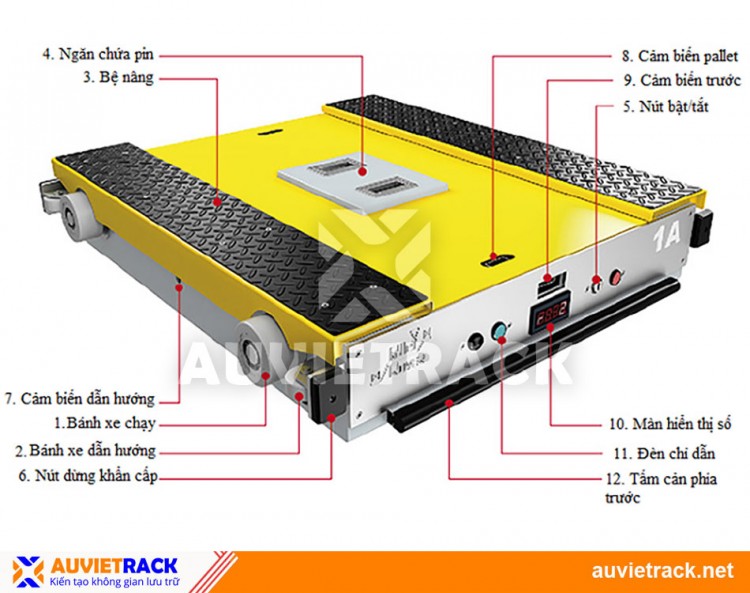

•  Step 2: Using a control device connected to Wifi, the operator will control the Pallet Shuttle robot and move to the first empty position on the rack. The sensors will ensure the movement and position.
•  Step 3: The robot will return to the original position ready for the next cycle. These steps will continue until the goods are sufficiently stored.

When unloading goods

•  Step 1: Drive the forklift to the top of the rack, where the goods need to be unloaded.
•  Step 2: Use the remote control to transmit the pallet export command to the robot.
•  Step 3: The forklift proceeds to shovel pallets off the racks. This process will continue to repeat until there are enough goods that need to be unloaded.
